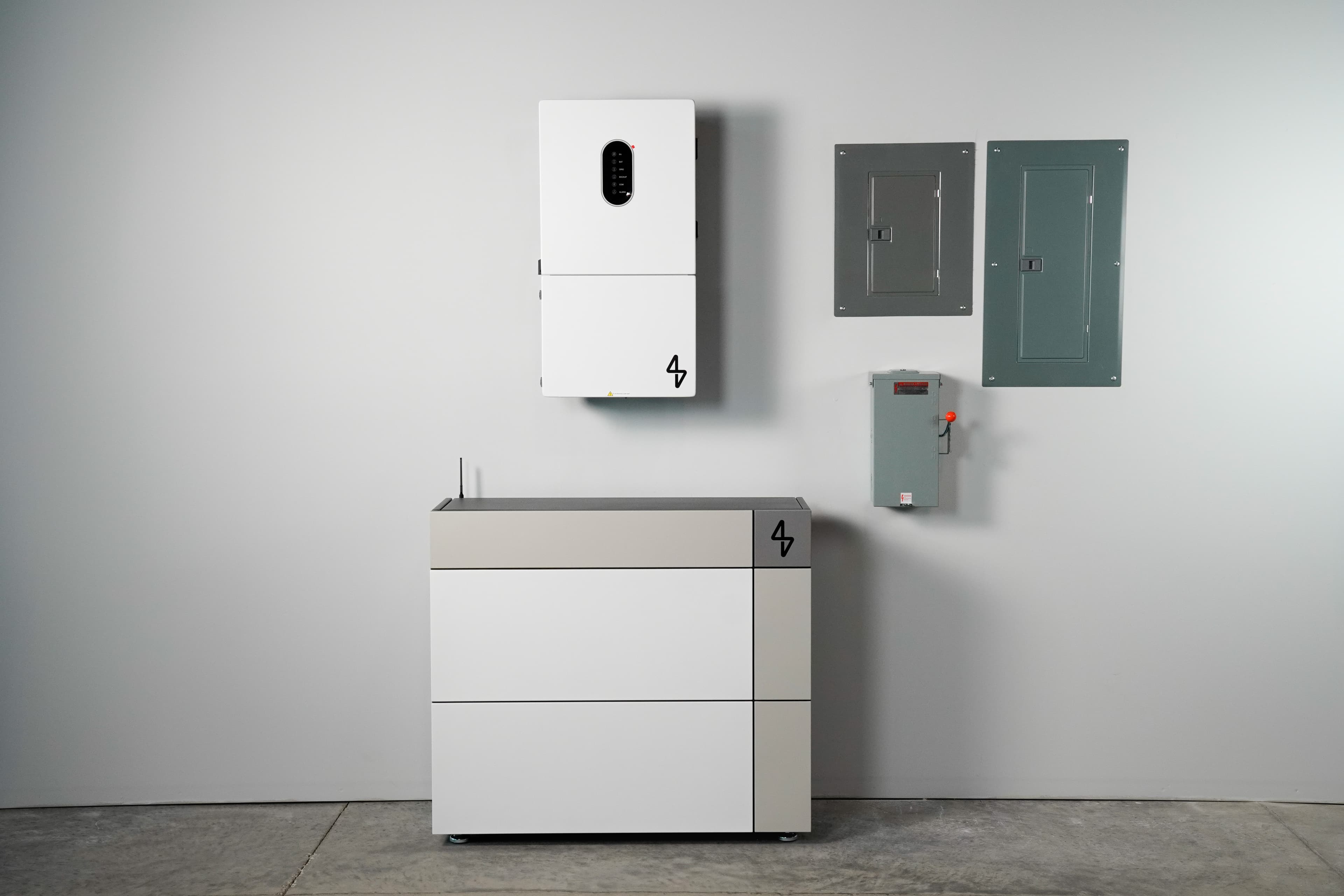

Fully compatible with the grid, solar, and generators, MeterHome's safe chemistries and flexible connections maximize energy savings and control through blackouts and whatever life brings your way.
Our advanced battery backup systems are stackable. Up to 8 battery enclosures and 9 inverters, delivering 114.4kW peak capacity and 90kW continuous power—ensuring your home stays on, no matter what.
Weight Approximation | 88 lbs. (40 kg) |
---|---|
Dimension (W x D x H) | 16.5" x 9.4" x 31.5" (420mm x 240mm x 800mm) |
Mounting | Wall bracket |
Cooling Method | Fan Cooling |
Ingress Protection Degree | NEMA 3R |
Operating Temperature Range | -20°C to 60°C (-4°F to 140°F) |
---|---|
Maximum Operation Altitude | max 6,562ft (2000m) |
Relative Humidity | 0~100% |
Ingress Protection Degree | NEMA 3R |
Nominal AC Output (W) | 10,000 |
---|---|
Maximum PV Input Power (W) | 15,000 |
Maximum Input Current per MPPT (A) | 30/22/22 |
Nominal Grid Voltage (Vac) | 120/240V (Split phase) / 208V (2/3 phase) |
Nominal Grid Frequency (Hz) | 50/60 |
Rated PV Input Voltage (Vdc) | 600 |
Start Up DC Voltage (Vdc) | 90 |
MPPT Voltage Range (Vdc) | 70-540 |
Maximum PV Circuit Current (A) | 44+44 |
Number of MPPT | 3 |
String per MPPT | 2/2/2 |
PV Connection Way | Terminals |
Peak Power (off grid) | 2 times of rated power, 10s |
Power Factor | 0.8 leading to 0.8 lagging |
DC Injection Current (mA) | THD <3% (Linear load <1.5%) |
Maximum Efficiency (PV to AC) | 98.0% |
Maximum Efficiency (BAT to AC) | 94.5% |
CEC. Efficiency | 96.5% |
Communication Interface | CAN(for BMS), DRM/RS485 (for meter), RS485 |
Safety Certification | UL1741, CSA C22.2, UL1699B |
Grid Regulation | UL1741SB, IEEE1547 :2018, HECO SRD 2.0 |
EMC | FCC Part 15 Class B |
Protection Category | Class I |
Connects up to | 9 Inverters |
Dimension (W x D x H) | 39.6" x 16" x 34.5" (1006mm x 406mm x 876mm) |
---|---|
Weight Approximation | 463 lbs. (210 kg) |
Installation Style | Indoor, Floor Mounted |
Cooling | air-cooled |
Humidity | 5%-95% |
---|---|
Maximum Operation Altitude | max 6,562ft (2000m) |
Enclosure Protection Rating | IP 44 |
Energy Configuration (kWh) | 14.3 |
---|---|
Maximum Charging / Discharging Current (A) | 150 |
Battery Operating Voltage (V) | 40-58.4 |
Battery Chemistry | LiFePO4 |
Charging Temperature Range | 0°C to 35°C (32°F to 95°F) |
Discharging Temperature Range | -30°C to 35°C (-22°F to 95°F) |
Cycle Life | 25°C (77°F) 8000 cycles, 70% SOH / 45°C (113°F) 3000 cycles, 70% SOH |
Safety Certification | UL60730, UL1973, UL9540, UL9540A, UN38.3 |
Warranty | 10 years (Standard) |
Connects up to | 8 Battery Enclosures |
